Product Datasheet Search Results:

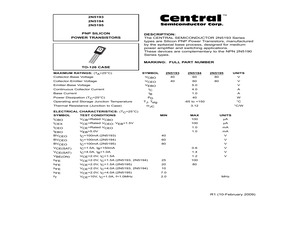

2 Pages, 513 KB, Original- 2N5194
- Central Semiconductor Corp.
- 4 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-126
134 Pages, 3011 KB, Original- 2N5194 LEAD FREE
- Central Semiconductor
- Trans GP BJT PNP 60V 4A 3-Pin TO-126

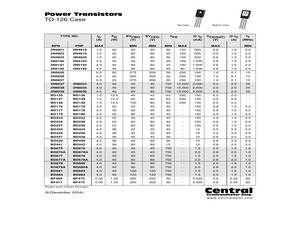

2 Pages, 41 KB, Original- 2N5194LEADFREE
- Central Semiconductor Corp.
- 4 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-126
6 Pages, 123 KB, Original- 2N5194
- Mospec Semiconductor
- 4 A/60 V PNP Power Transistor
5 Pages, 183 KB, Original- 2N5194
- National Semiconductor
- PNP Power Transistors

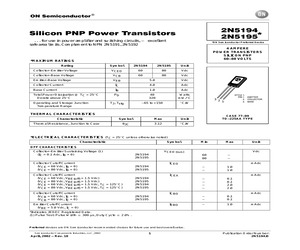

8 Pages, 101 KB, Original- 2N5194
- On Semiconductor
- Silicon PNP Power Transistor
8 Pages, 101 KB, Original- 2N5194-D
- On Semiconductor
- Silicon PNP Power Transistors

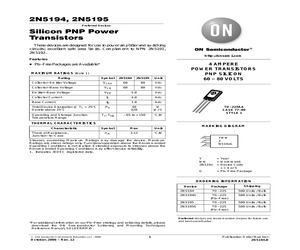

6 Pages, 74 KB, Original- 2N5194G
- On Semiconductor
- TRANS PNP PWR GP 4A 60V TO225AA - 2N5194G

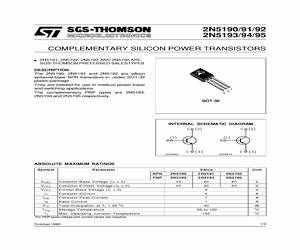

4 Pages, 83 KB, Scan- 2N5194
- Stmicroelectronics, Inc.
- 4 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-126
Product Details Search Results:
Centralsemi.com/2N5194
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"PLASTIC/EPOXY","Transistor Polarity":"PNP","Terminal Form":"THROUGH-HOLE","Power Dissipation Ambient-Max":"40 W","Package Style":"FLANGE MOUNT","DC Current Gain-Min (hFE)":"10","Collector-emitter Voltage-Max":"60 V","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"2 MHz","Collector Current-Max (IC)":"4 A","Transistor Element Material":"SILICON","Terminal Position":"SINGLE","Transistor Type":"GENERAL PURPOSE POWER",...
1308 Bytes - 13:52:56, 12 May 2025
Centralsemi.com/2N5194 LEAD FREE
916 Bytes - 13:52:56, 12 May 2025
Centralsemi.com/2N5194LEADFREE
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"MATTE TIN (315)","Package Body Material":"PLASTIC/EPOXY","Transistor Polarity":"PNP","Terminal Form":"THROUGH-HOLE","Power Dissipation Ambient-Max":"40 W","Package Style":"FLANGE MOUNT","DC Current Gain-Min (hFE)":"10","Collector-emitter Voltage-Max":"60 V","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"2 MHz","Collector Current-Max (IC)":"4 A","Transistor Element Material":"SILICON","EU RoHS Compliant":"Yes","Terminal Position":...
1408 Bytes - 13:52:56, 12 May 2025
N_a/2N5194
{"Category":"PNP Transistor, Transistor","Amps":"4A","MHz":">2 MHz","Volts":"60V"}...
514 Bytes - 13:52:56, 12 May 2025
Onsemi.com/2N5194G
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"4A","Online Catalog":"PNP Transistors","Transistor Type":"PNP","Frequency - Transition":"2MHz","Product Photos":"TO-225AA","Vce Saturation (Max) @ Ib, Ic":"1.4V @ 1A, 4A","Current - Collector Cutoff (Max)":"1mA","Series":"-","Standard Package":"500","Voltage - Collector Emitter Breakdown (Max)":"60V","Supplier Device Package":"TO-225AA","Packaging":"Bulk","Datasheets":"2N5194, 95","Power - Max":"40W","Family":"Transistors (BJT) ...
1657 Bytes - 13:52:56, 12 May 2025
St.com/2N5194
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"PLASTIC/EPOXY","Transistor Polarity":"PNP","Terminal Form":"THROUGH-HOLE","Package Style":"FLANGE MOUNT","DC Current Gain-Min (hFE)":"10","Collector-emitter Voltage-Max":"60 V","Transistor Application":"SWITCHING","Transition Frequency-Nom (fT)":"2 MHz","Collector Current-Max (IC)":"4 A","Case Connection":"ISOLATED","Transistor Element Material":"SILICON","Terminal Position":"SINGLE","Transistor Type":"GENERAL PURPOSE POWER","Package S...
1281 Bytes - 13:52:56, 12 May 2025
